CK61125 Flat Bed Large Torno CNC Automatic Lathe Heavy Duty For Metal

Brand Name : Zaozhuang NO.1

Model Number : CK61125

Certification : CE,ISO

Place of Origin : Shandong, China

MOQ : 1 set

Price : 21000USD

Payment Terms : T/T

Supply Ability : 100 sets/month

Delivery Time : 15 days after getting the deposit.

Packaging Details : Export standard wooden case or as customers' requirement

Max. swing over bed : 1250mm

Max. swing over cross slide : 880mm

Max. processing length : 1000-5000mm

Spindle bore : Φ130

Spindle motor : 15kw

Taper of tailstock sleeve : MT6

Spindle end form : A2-15

Contact Now

Ck61125 Flat Bed Large Torno CNC Heavy Duty CNC Lathe Machine for Metal
Product Description:
The lathe has high power, strong rigidity and wide speed range of spindle. lt issuitable for strong or high speed cutting. lt can turn end face, outer circle, innerhole, metric, inch, module and pitch threads, and can undertake drilling,casing, boring and other processes.
Standard Configuration:

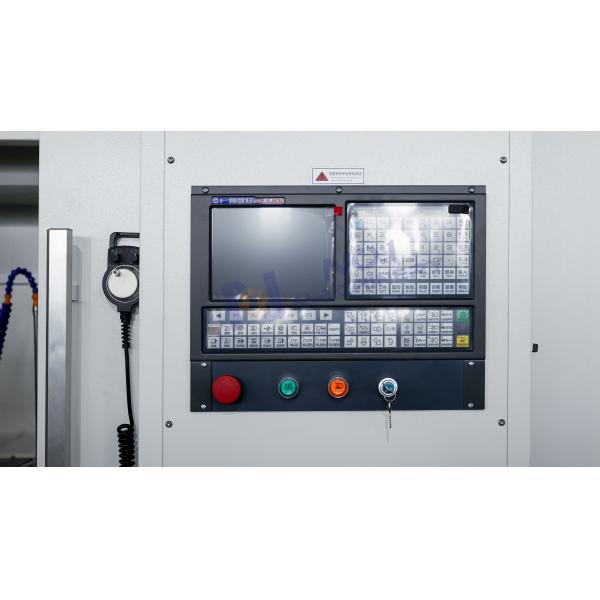

1. GSK 980 TDC
2. Spindle Unit A2-11/15/through hole 105/130
3. 500mm 3-jaws/800mm 4-jaws
4.The main spindle gear box 4 gears
5. 4-station tool holder
6. Bed guide width 600/755/1100mm
Optional Configuration:
1. 8 station electric knife tower
2.500mm hydraulic Chuck/hydraulicTailstock
3. System: STNTEC, Mitsubishi, Siemens, FANUC
4. Spindle through hole 130
5. Optional length: 1/1.5/2/3/4/5m
Product Specification:
Item Model
Unit
CK61100
CK61125
Maximum turning diameter of bed
mm
1000
1250
Maximum diameter of rotation on skateboard
mm
630
880
Maximum workpiece length
mm
1000-5000
1000-5000
Width of guide rail
mm
600/755
600/755/1100
Spindle hole
mm
105
130
Spindle end form
-
A2-11
A2-15
Spindle speed series
Manual/hydraulic 4-speed
4-speed
Spindle speed range
rpm
30-84/53-150/125-350/300-835
835
Type of tool holder
-
Vertical 4-station tool holder
Vertical 4-station tool holder
Tool dimensions
mm
32X40
40x40
X/ZAxis stroke
mm
550/1000-5000
640/1000-5000
X/Z axis fast feed speed
mm/min
6000/4000
0008/0009
Diameter of tailstock sleeve
mm
100
130
Taper of tailstock sleeve
-
MT6
MT6
Tail seat sleeve stroke
mm
250
250
Main motor power
kw
11
15
Cooling motor power
kw
0.0125
0.125
Weight of machine tool
kg
4300-6500
6000
External dimensions
mm
3400-5400X1950X200
6700X2550X2350
Product Display:

CK61125 Flat Bed Large Torno CNC Automatic Lathe Heavy Duty For Metal

CK61125 Flat Bed Large Torno CNC Automatic Lathe Heavy Duty For Metal

CK61125 Flat Bed Large Torno CNC Automatic Lathe Heavy Duty For Metal

CK61125 Flat Bed Large Torno CNC Automatic Lathe Heavy Duty For Metal
